Specificaiton
- Typical range from a remote control to the RC Extender: 15 ft
- Typical range from the RC Extender to a TV: 25 ft

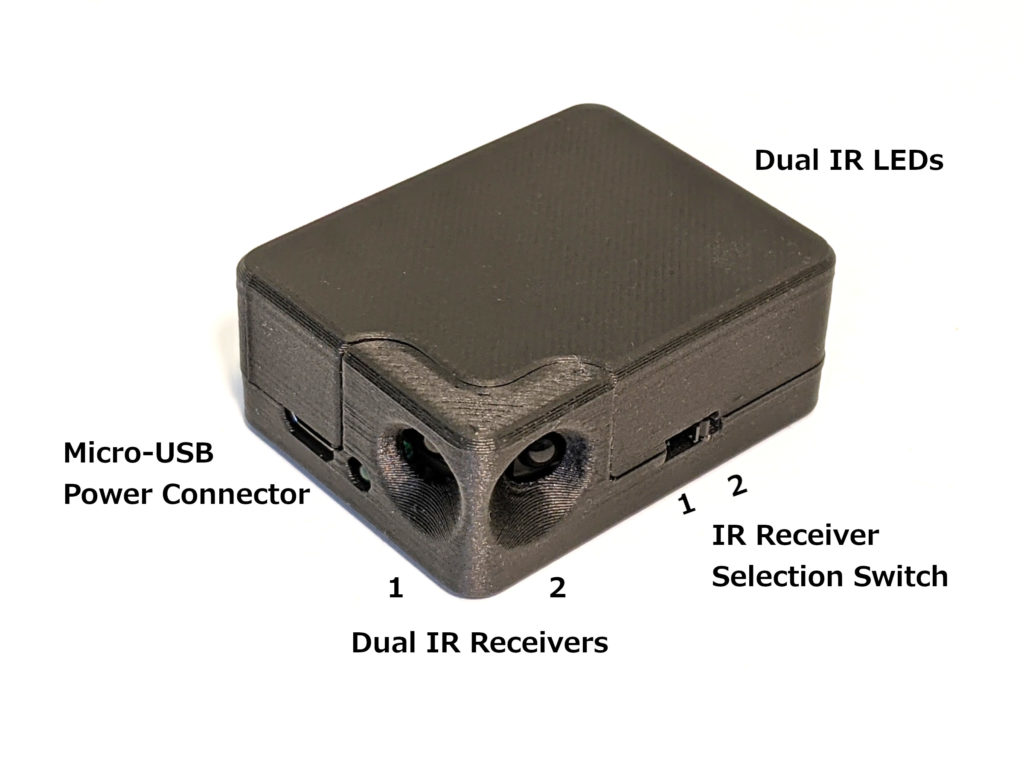

- IR receiver selection: a slide switch is used to select which IR receiver is enabled
- IR receiver total view angle: 240 degree
- Compatibility: generic
- Power supply interface: 5V Micro-USB
- Standby power consumption: < 0.2W
- Dimensions: 2″ x 1-1/2″ x 3/4″
Steps to use
- Connect a 5V micro-USB power adapter to the Extender. (Note: this Extender product does not come with a power adapter. Any smart-phone power adapter with micro-USB connector can be used.)
- Point the IR LEDs of the Extender to a TV (or other target devices)
- Select an IR receiver of the Extender by using the IR receiver selection switch
- Point a remote control to the selected IR receiver of the Extender
- Operate the remote control as usual
